Miter saw
Use the backstop for repeat cuts where the stock can be brought squarely to the saw fence.
Customized Backstop
This laser generated backstop allows you to specify custom labels at specific measurements that you use frequently, saving time and reducing errors.
Backstop applications
- EMT conduit
- PVC pipe
- Plumbing jobs
- Lumber
- Plastic rods
- Steel rods
- Aluminum tube
Ideal for
- Cabinet makers
- Machine shops
- Production lines
- Lean manufacturing
- Quick change setups
Backstop features

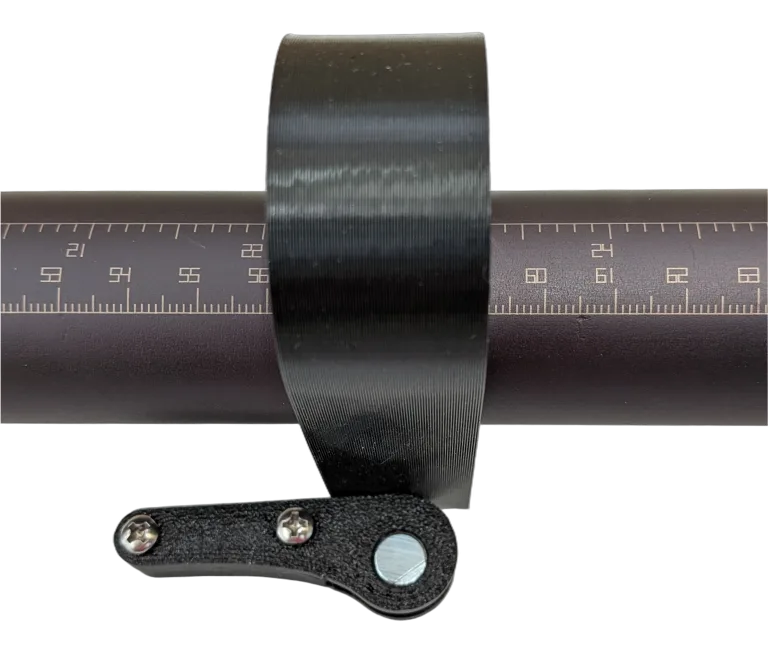

- Slide the stop to the desired position, flip to lock, push your material up to the stop and make your cut.
- Specify unique labels at specific measurements you commonly use, saving time and reducing errors.
- Specify inch, metric, or both, the number of divisions per unit, and the start and end measurement.

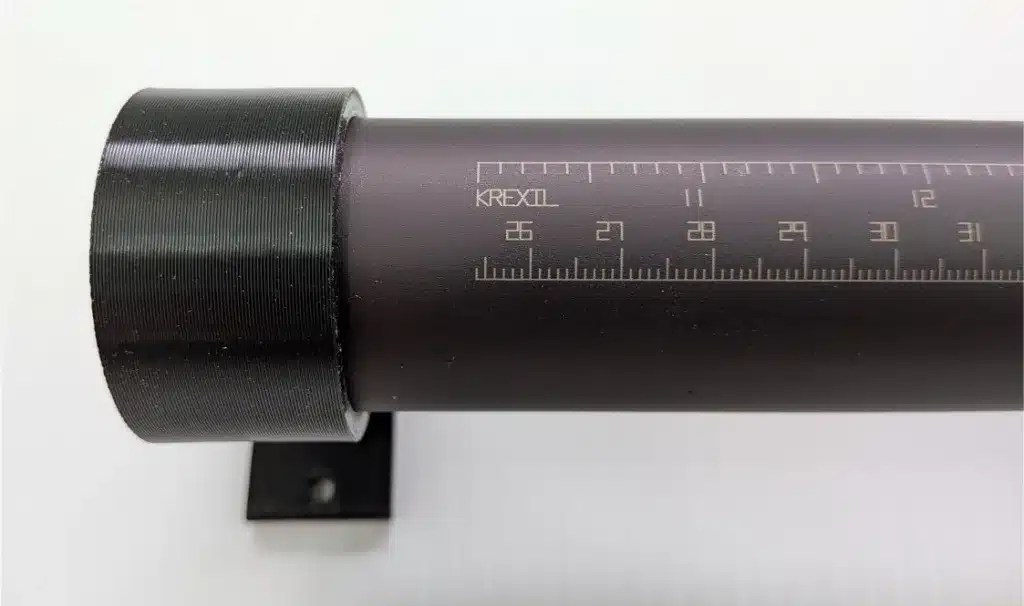

- Precision aluminum tube, anodized and CNC laser engraved for clear durable high contrast markings.

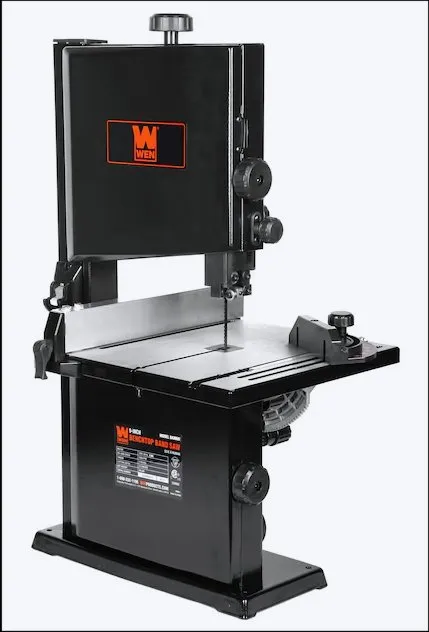

Band saw
The scale and stop help reduce re-measuring when cutting tube, rod, bar, and similar stock.
Chop saw
Lock the stop at the desired position, push the material to the stop, and make the cut.
Product details
| Dimensions | 12 to 60 inches as required. |
|---|---|
| Weight | Up to 3 lbs. |
| Accuracy | .005 inch over full length at 75F. |
| Saw types | Useful with chop saws, band saws, cut-off saws, abrasive saws, cold saws, and miter saws. |
| Configuration | Choose mounting height, start and end measurements, divisions, inch/metric markings, up to 10-character custom labels, and average shop temperature for compensation. |
Our Back Stop Evolution

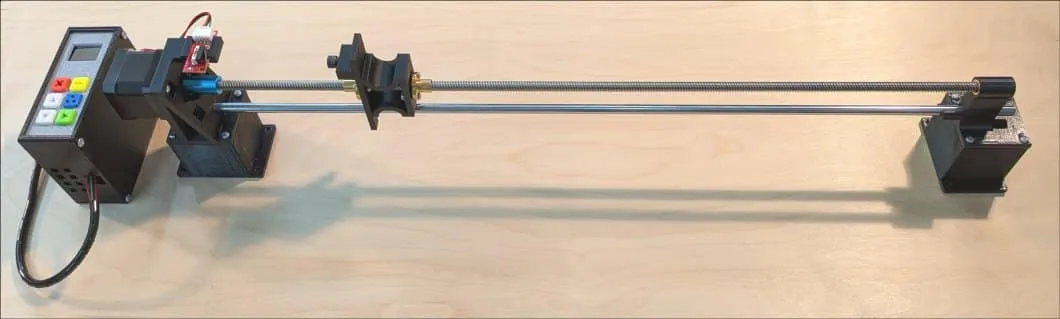

We started by marking cuts by hand, then tried spacers, threaded rods, a CNC lead screw experiment, and off-the-shelf T-tracks.
The practical answer was better information at the point of use: CNC laser engraving the specific measurements and frequent labels directly onto the scale. That removes the lookup step and makes repeat cutting simpler.
Customized Backstop FAQs
What is the custom configured backstop?
It is a precision measuring stop that mounts near a stationary saw so repeated cuts can be made without re-measuring every piece.
What saws is it compatible with?
It can be used with stationary saw setups including bandsaws, miter saws, chop saws, and cut-off saws when mounted safely and square to the blade.
How do I calibrate it?
Mount the supports, align the scale to your reference measurement, make a test cut, then fine tune the scale position until the cut length matches.
