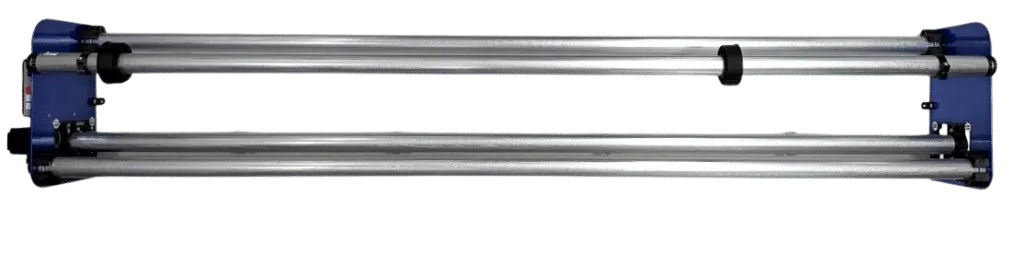

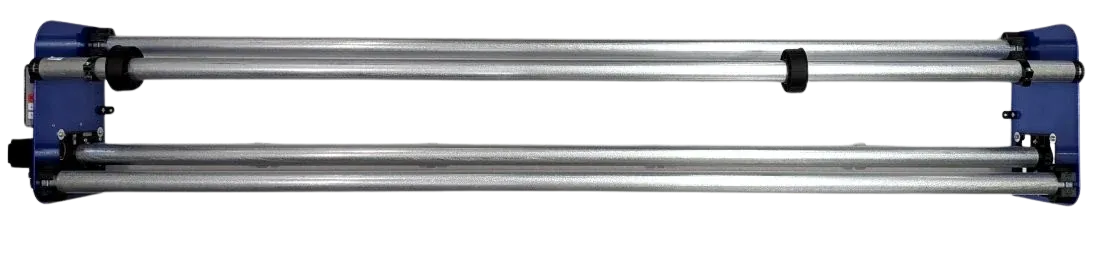

Desktop CNC roll-to-sheet cutter for paper and film. Cuts sheets from roll stock in seconds. Dual-stepper drive and steel guide rails for accurate, square cuts. Designed and made in USA by Krexil. Microprocessor control with settings for width, count, delay, speed and acceleration. This version supports rolls up to 60 inch wide and 12 inch diameter. Free ground shipping within the U.S.
Common roll-to-sheet uses that fit this cutter width.
Posters & Prints
Sheet large format posters from printed rolls.
Laser & Film Work
Prepare paper or film sheets for downstream laser, plotting, or specialty production work.
Drawing & Drafting
Cut drawing paper for classroom projects to optimal size from roll stock.
Window Film
Sheet window film and laminates into workable sizes.
Cage Liners
Cut absorbent paper sheets for cages, trays, and animal-care cleanup areas.
What Customers Say
Real feedback from production, apparel, and quilting users.
Assembly
The first machine is assembled and works great.
L. Nichols, Confinity Robotics
Sheet Prep
The cutter has made prepping sheets way faster and consistent, so it's been a great addition.
Jesse L., Strong Girls
Time Savings
I love my cutter! It has saved me hours of manual work.
Aimee, professional quilter
Handles most paper and film types
Use the same machine for common roll-to-sheet jobs across paper, film, packaging, food-service, classroom, and production workflows.

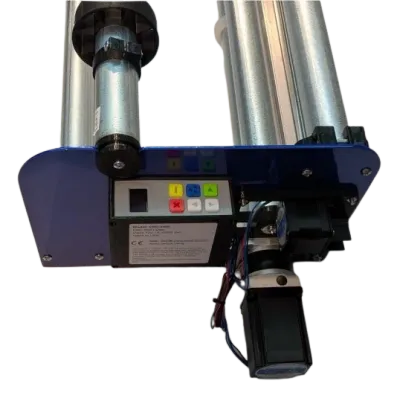

Console Controls at a Glance
The console features six easy-to-use buttons and a convenient display, allowing you to easily view and adjust your settings for optimal performance.
6-Button Quick Guide
ResetReset controller.StopStop the current run.IncrementIncrease the selected setting value.MenuMove through settings.DecrementDecrease the selected setting value.GoEnter a menu mode or start a run.
Console Menu Features
Menu
Use
Length
Set target sheet length.
Quantity
Run a selected sheet count.
Jog
Advance material manually.
Delay
Pace repeated cuts.
Units
Set measurement units.
Width
Set cut width.
Speed
Set feed speed.
Eject
Adjust sheet eject.
Sensor
Sensor accessory option settings - Just-in-Time or Find-Mark modes.
Paper and film roll cutter features
The carriage moves the blade smoothly through the material, ensuring precise cuts with each sheet. Designed for continuous operation, the operator can start the next cut while using the current sheet, improving throughput.
Easy to Operate
No training is required. The straightforward control panel makes it accessible for any user in any setting.
Minimized Material Waste
By cutting only the exact length needed, this machine helps reduce scrap, making it more cost-effective than traditional manual methods.
Comparison to a conventional dispenser
In the two videos we demonstrate the time saved in wrapping and void fill.
Updated machines shown above: The current machines include several improvements, while the videos below still demonstrate the same time-saving wrapping and void-fill workflows using earlier models.
The Krexil roll cutter is a paper roll cutting machine and roll-to-sheet cutting machine that also serves as a roll dispenser, providing a quick and efficient way to speed up your process. It ensures cleaner cuts for a professional appearance, reduces the need to order and store a variety of pre-cut sheets, and simplifies procedures by allowing for the specification of optimal sheet sizes.
ASSEMBLY: To ensure safe, secure transit, the cutter is shipped in two or three boxes (depending on the model). Attaching the cross bars, carriage, O-rings and roll clamps is straightforward using a screwdriver.
General Specifications
Cut Length Resolution
1 mm (accuracy: +/- 1%)
Power
12V 1A (center positive)
Materials
Compatible with paper (e.g. gift wrap, art, kraft, logo, photographic), most films (e.g. DTF, sublimation, PET, BOPP, foil, PE, PP, reflective) and some elastomers. Ask if your material is compatible.
Thickness
.002" to .012" for most papers and films. Contact us for testing thicknesses outside the normal range.
Roll Diameter
Up to 12 inch. A roll extension option allows for 16 inch rolls on the 12, 24 and 36 inch models.
Replacement Blades
Low-cost blades are available on Amazon and other vendors. Titanium coated blades have significantly longer life on some materials.
Note: optional sensors are available for special applications including a Just-In-Time sensor that waits for a sheet to be taken before cutting the next one and a Mark sensor for cutting at a mark for pre-printed rolls.
Model Specifications
Dimensions
Dimensions
70 x 14 x 9 in
Weight
35 lb
Simple Roll-to-Sheet Workflow
A quick setup path for repeatable cuts from roll material.
1. Mount the roll
Place the material on the cutter so it feeds cleanly from the roll holder.
2. Thread the material
Feed the leading edge through the cutter path and align it before starting the job.
3. Set length and Go
Enter the length and quantity, then press Go for repeatable roll-to-sheet cutting.
Frequently asked questions
Can the machine cut film rolls? Yes, the machine is suitable for most paper and film.
How does the Krexil Paper Roll Cutter save me time? The machine automates the cutting process, eliminating the need for manual measuring and cutting. This allows you to focus on your use of the paper while the machine works.
What are the benefits of using the Krexil Paper Roll Cutter compared to a conventional dispenser? The Krexil cutter saves time by eliminating time spent measuring length and making the cut. It delivers clean and straight cuts for a professional appearance. And it minimizes wasted material by cutting to the optimal length.
Is paper or film in roll form lower cost than sheet? Yes, generally buying in roll form is more economical.
How does the Krexil cutter compare in cost? Many automated cutters cost thousands of dollars. The Krexil cutter is one of the lowest cost machines available yet it includes many advanced features.
